LED Courtyard Light

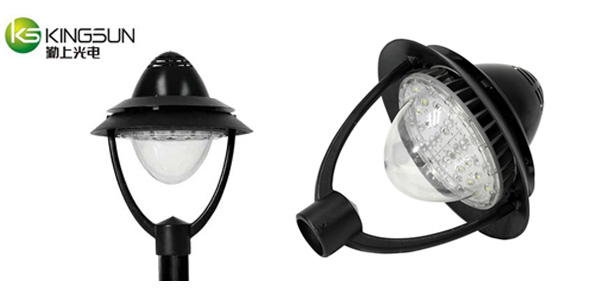

LED Courtyard Light(Peris)
Product Description:
Kingsun has successfully developed and pushed a series of regular and solar LED garden lighting products into global market since 2007. PL1A super bright solar garden lights, featuring oliver-shape design for outdoor lighting, high uniformity, long lifespan over 50,000 hours and environmentally protection, etc., are receiving increasing interest and attention from global strength purchasers.
Product characteristics
1. Elegant appearance, popular style.
2. Optional color for pole and lampshade, solar powered available.
Application
Courtyard, garden, park, residential area, villa, square, sidewalk
| PL1A1036S5(KS-8602) Detailed Technical Parameters is showing as following | |
| Input Voltage (VAC) | AC 100～277V |
| Frequency Range (HZ) | 50～60Hz |
| Power Factor (PF) | >0.95 |
| Total Harmonic Distortion | <15% |
| Power Efficiency | 88% |
| Working Voltage (VDC) | DC 53V |
| LED Consumption (W) | 36 W |
| System Consumption (W) | 45 W |
| LED Luminous Efficiency | >90 lumens/w |
| LED Initial Flux (LM) | 3200 Lumens |
| Lamp's Effciency (%) | >90% |
| Color Temperature | 5000～5500K |
| Color Rendering Index (CRI) | Ra>75 |
| Light Distribution Curve/Beam Pattern | Asymmetric(Bat Wing)/Rectangular Beam |
| Junction Temperature (Tj) | <75℃ |
| Working Enviornment | Temperature: -35℃～65℃； |
| Humidity: 10%～95% | |
| IP Rating | IP66 |
| Working Life | >50000 hours |
| Light Body & Lampshade Material | Aluminum Alloy |
| Net Weight/Gross Weight(Kgs) | 7.3 kgs |
| Packaging Size (mm) | 54(L)×54(W)×65(H) |
